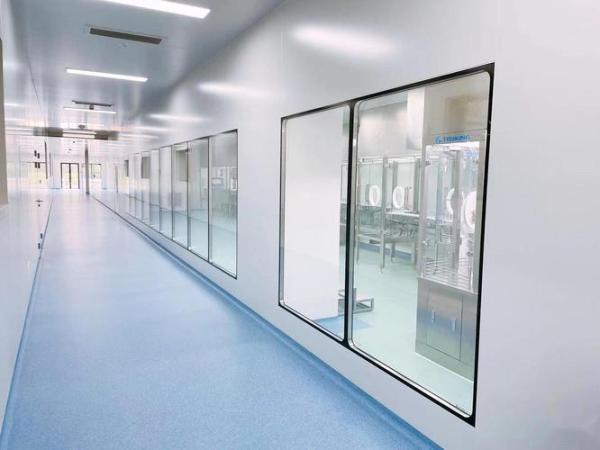

Dust Free Room Project Aluminum Profiles/Electrostatic-Sprayed Square Steel

Product Categories

Shenzhen Zhong Jian South Environment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Dust Free Room Project Aluminum ProfilesElectrostaticSprayed Square Steel
Brand: ZJNF
Price: 1 USD

Brand Name : ZJNF

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : tt lc PayPal credit card

Delivery Time : 18days

Packaging Details : plywood/wooden package

Overall Dimension : Customized

Body Material : Cold-roll Steel /Stainless Steel

Door Material : Stainless Steel

Filter Efficiency : 99.99%

Air exchange rate : 100,000-grade 10-15 times/hour

Temperature : 24 C–26 C in summer; 20 to 22 DEG C in win

Material : Stainless Steel,Stailess Steel SUS304/201/Q195 /galvanized Sheet,sandwich panel,fire-proof),laminated board(scratch-proof

Application : 100 Lab / Laboratory Clean Room,Pharmaceutical,Chemical Lab,Electronic plant,Hospital

Type : Clean Room Booth,Modular Designs,cleanroom

Usage : Air Purification System,Pharmaceutical factory or laboratory,Dust Free Working for lcd glass oca laminating,Laborotory,clean requirement

Contact Now

‌Design Planning Phase‌
- ‌Customized Cleanliness Class‌: Supports ISO Class 3 (Class A) to ISO Class 8 (Class 100,000), adjustable via FFU coverage (100% coverage for Class 100) and air-change rates.
- ‌Intelligent Control System‌: Integrates 10-inch touchscreen for real-time monitoring of temperature (±0.1°C precision), humidity (±1% RH precision), differential pressure, and particle concentration, with remote control capability.
‌Construction & Installation‌
- ‌Prefabricated Modular Components‌: Main framework (aluminum profiles/stainless steel), envelope panels (powder-coated steel), FFU units, etc., factory-preassembled to minimize on-site contamination.
- ‌Rapid Deployment‌: On-site assembly of standardized modules completed in 3–5 days, 30% faster than traditional cleanrooms.
‌Validation Standards‌
- Continuous 3-day viable particle monitoring (e.g., ≤1 cfu/m³ for ISO Class 5 zones).
- Differential pressure gradients maintained at 10–15 Pa, with highest positive pressure in critical areas.

‌Component‌	‌Specifications‌
‌Structural Frame‌	Aluminum profiles/electrostatic-sprayed square steel tubes/SUS304 stainless steel (anti-static, corrosion-resistant)
‌Filtration System‌	HEPA efficiency ≥99.99%@0.3μm; Class 100 zones adopt "dual HEPA + UV sterilization" exhaust technology
‌Energy Efficiency‌	DC-motor FFUs reduce energy consumption by >60%, with additional 9% savings in standby mode
‌Flooring Material‌	Epoxy resin/PVC flooring (chemical-resistant, anti-slip)

‌Metric‌	Modular Solution	Traditional Solution
‌Construction Period‌	3–5 days	≥3 months (including civil works)
‌Retrofit Cost‌	98% material reuse rate	High demolition/reconstruction costs
‌Flexibility‌	Supports relocation/expansion (e.g., Ningbo Physis 450 m² workshop relocation)	Fixed structure, difficult to modify
‌Optimal Scale‌	Cost-effective for <500 m²	Suitable for large workshops
